Goff® Parts
Premium Replacement Parts
Discover RUGGED's high-quality aftermarket replacement parts inspired by the Goff® Style blast wheel. Our parts are meticulously engineered for a flawless fit on existing wheel assemblies. Made from wear resistant cast iron and other premium materials, our replacement parts deliver exceptional performance and reduce downtime in even the toughest applications. Replacement parts available for Gibson®, Goff®, Cardinal®, Coyote®, and other similar blast wheels. RUGGED premium replacements are guaranteed to operate with equal or superior performance compared with the original OEM versions.
All parts are made and stocked in the USA.
Blade Set, 7-Blade, 12”
Part Number: R-12064
Brand: RUGGED
Description: Cast Blade Set, Goff style, 7 pcs/set, 12” wheel. Includes springs.
Will Replace
5102064
C5102064
CP5102064
G2064-7
Impeller
Part Number: R-00136
Brand: RUGGED
Description: Impeller, Goff style, 7-blade, 12”, 13.5”, 15” wheel
Will Replace
5000136
C5000136
CP5000136
G0136
Control Cage
Part Number: R-00138
Brand: RUGGED
Description: Control Cage, 40 Deg, Goff style, 12”, 13.5”, 15” wheel
Will Replace
5000138
C5000138
CP5000138
G0138
Centering Plate
Part Number: R-00137
Brand: RUGGED
Description: Centering plate, Goff style, 12”, 13.5”, 15” wheel
Will Replace
5000137
C5000137
CP5000137
G0137
Top Curve Liner
Part Number: R-01936
Brand: RUGGED
Description: Cast Top Curved Liner,
Goff style, 12”, 13.5”, 15” Blast Wheel
Will Replace:
5001936
C5001936
CP5001936
G1936
End Liner, Short
Part Number: R-01937
Brand: RUGGED
Description: Short End Liner Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
5001937
C5001937
CP5001937
G1937

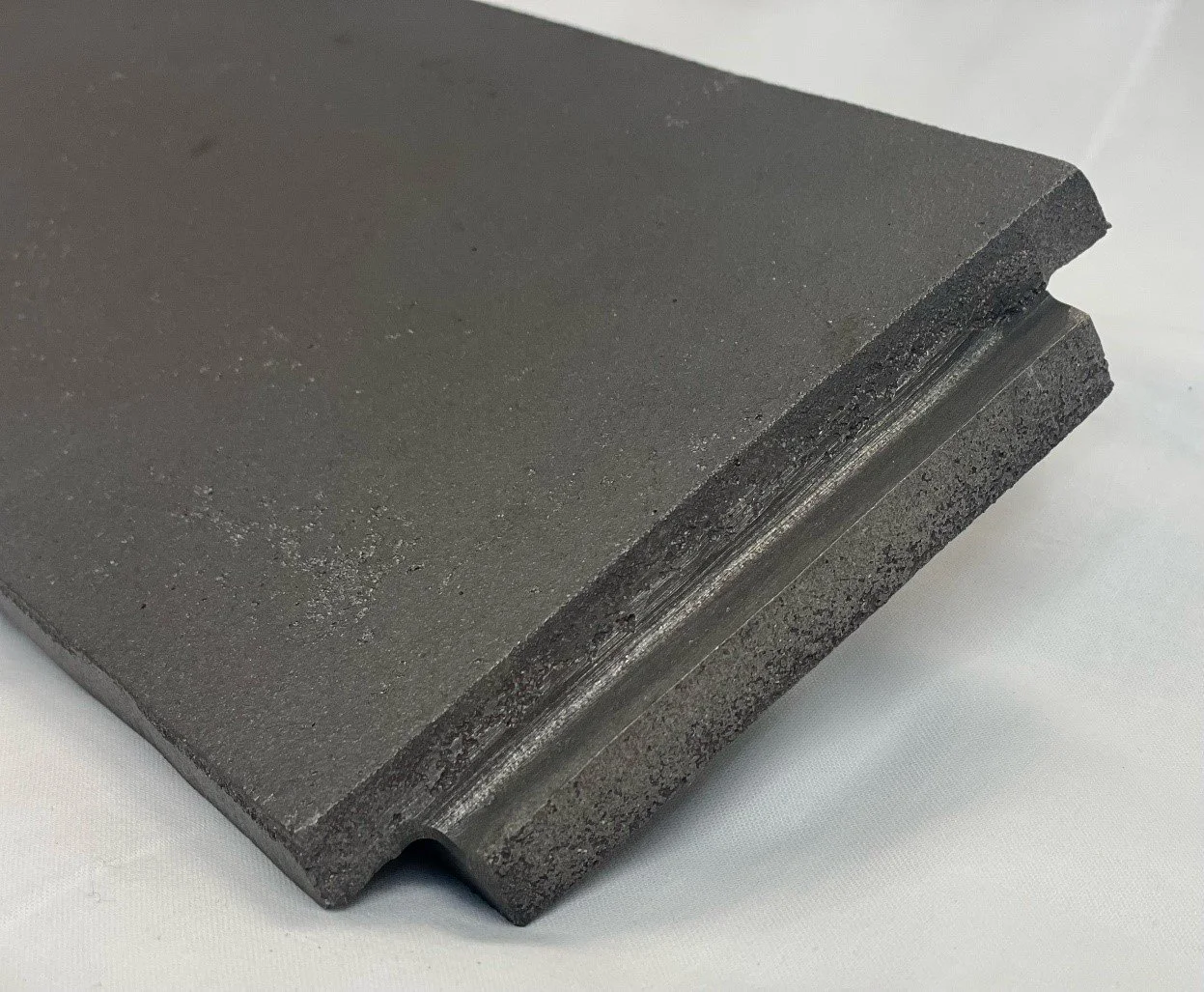

End Liner, Long
Part Number: R-02308
Brand: RUGGED
Description: Cast long end liner for a Goff style, 12”, 13.5”, 15” wheel
Will Replace
5002308
C5002308
CP5002308
G2308
Impeller, Socket Cap Screw
Part Number: R-04114
Brand: RUGGED
Description: Impeller Bolt, Goff style, 12”, 13.5”, 15” wheel
Will Replace
7004114
C7004114
CP7004114
G74114
Tune Up Kit (7 Blade, 12”)
Part Number: RK-14502
Brand: RUGGED
Description: Tune-Up Kit, Goff style, 12” Blast wheel includes: R-12064 Blade Set, R-00138 Control Cage, R-00136 Impeller, R-04114 Impeller Bolt, R-00962 Lock Washer, R-00302 Feed Spout Seal, R-00293 Hub Seal
Will Replace
0144502
C0144502
CP0144502
G144502
Blade Set, 7 Blade, 15” Wheel
Part Number: R-51366
Brand: RUGGED
Description: Cast Blade Set, Goff style, 7 pcs/set, 15” wheel. Includes springs.
Will Replace
5101366
C5101366
CP5101366
G1366-7
Blade Set, 8 Blade, 15” Wheel
Part Number: R-51542
Brand: RUGGED
Description: Blade Set, Goff style, 8 pcs/set, 15” wheel. Includes springs.
Will Replace
5101542-8
C5101542-8
CP5101542-8
G5101542-8

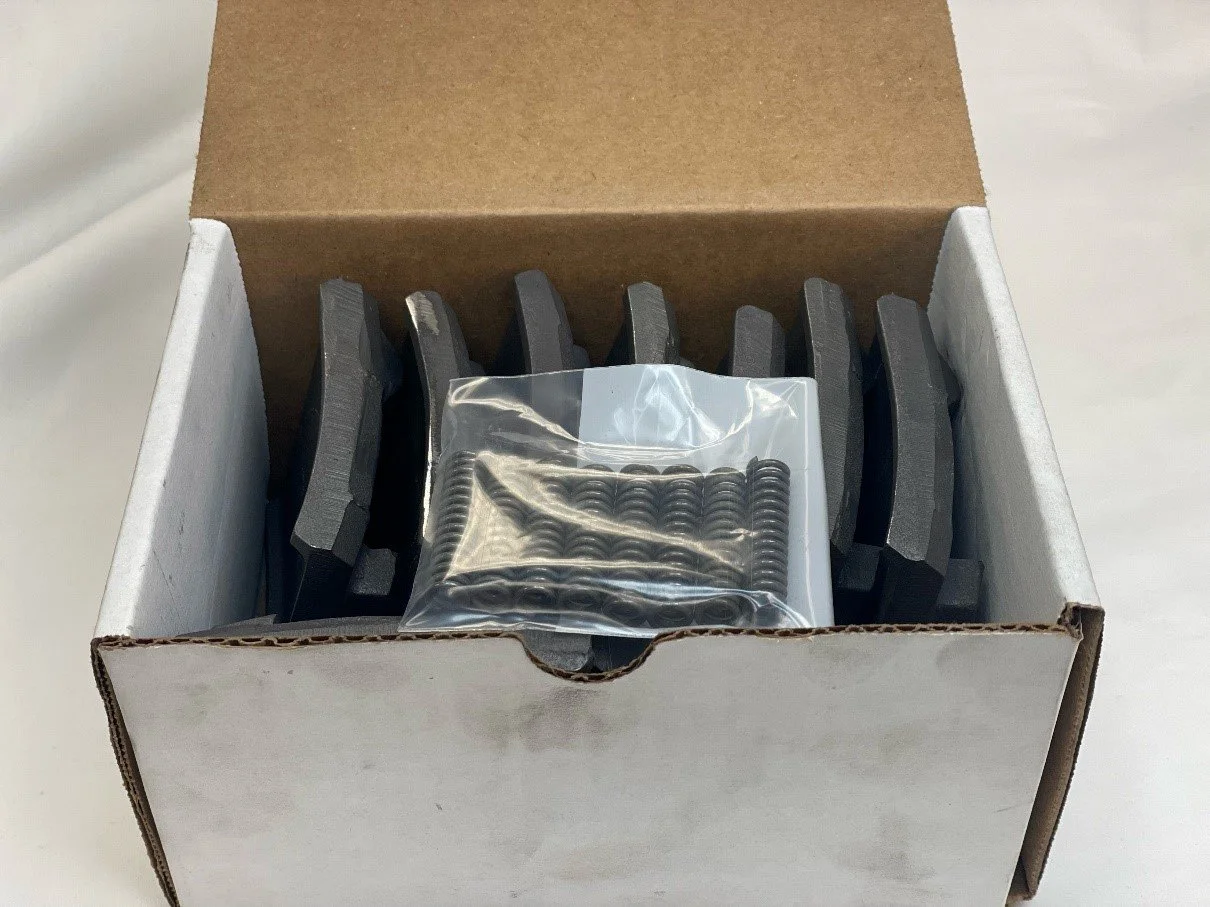

Blade Set, 8 Blade, 12” Wheel
Part Number: R-51540
Brand: RUGGED
Description: Blade Set, Goff style, 8 pcs/set, 12” wheel. Includes springs.
Will Replace
5101540-8
C5101540-8
CP5101540-8
G5101540-8
Feed Spout Seal
Part Number: R-00302
Brand: RUGGED
Description: Polyurethane feed spout seal for a Goff style, 12”, 13.5”, 15” wheel.
Will Replace
5000302
C5000302
CP5000302
G0302
Cage Adapter
Part Number: R-51301
Brand: RUGGED
Description: Cage Retainer, Goff style, 12”, 13.5”, 15” wheel
Will Replace
5100301
C5100301
CP5100301
G0301
Roll Pin
Part Number: R-60531
Brand: RUGGED
Description: Steel Roll Pin for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
6000531
C6000531
CP6000531
G60531
Shear Rings
Part Number: R-00294
Brand: RUGGED
Description: Shear ring Goff style, 12”, 13.5”, 15” wheel, set of 8
Will Replace
5000294
C5000294
CP5000294
G0294
Wheel Housing
Part Number: R-12045
Brand: RUGGED
Description: Fabricated wheel housing, Goff style, 12”, 13.5”, 15” wheel
Will Replace
0102045
C0102045
CP6001204
G12045
Wheel Lid
Part Number: R-02041
Brand: RUGGED
Description: Fabricated wheel lid for housing, Goff style, 12”, 13.5”, 15” wheel
Will Replace
0102041
C0102041
CP6001201
G12041
Rear Side Liner
Part Number: R-01938
Brand: RUGGED
Description: Cast high wear resistant Rear Side Liner for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
5001938
C5001938
CP5001938
G1938
Front Side Liner
Part Number: R-01939
Brand: RUGGED
Description: Cast high wear resistant Front Side Liner for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
5001939
C5001939
CP5001939
G1939
Feed Spout
Part Number: R-00303
Brand: RUGGED
Description: Cast Feed Spout, Goff style, 12”, 13.5”, 15” wheel
Will Replace
5000303
C5000303
CP5000303
G0303
Lock Washer, High Collar
Part Number: R-00962
Brand: RUGGED
Description: High collar lock washer, Goff style, 12”, 13.5”, 15” wheel
Will Replace
6000962
C6000962
CP6000962
G60962

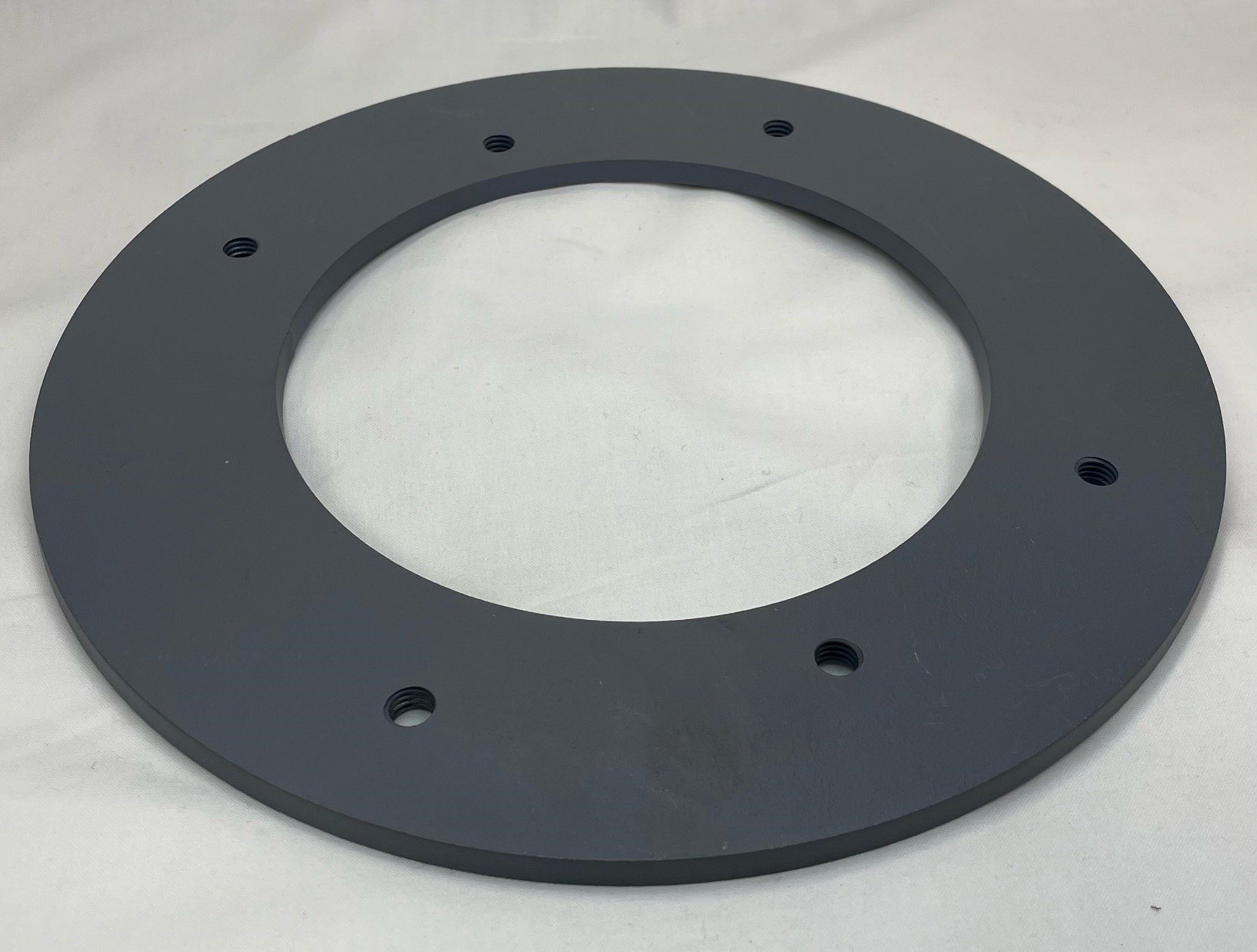

Cage Retainer
Part Number: R-00268
Brand: RUGGED
Description: Cage Retainer, Goff style, 12”, 13.5”, 15” wheel
Will Replace
0000268
C0000268
CP00000268
G0268
Felt Hub Seal
Part Number: R-00293
Brand: RUGGED
Description: Felt Hub Seal for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0000293
C0000293
CP00000293
G0293
Hub Seal
Part Number: R-51292
Brand: RUGGED
Description: Cast hub seal, Goff style, 12”, 13.5”, 15” wheel
Will Replace
5100292
C5100292
CP5100292
G0292
Blade Block - CCW, 7 Blade Set
Part Number: R-51117
Brand: RUGGED
Description: Cast blade block set, CCW (Counter Clockwise) Goff style, 7pcs/set used on a 12”, 13.5”, 15” blast wheel. Includes springs.
Will Replace
5100117
C5100117
CP5100117
G0117-7
Blade Block - CCW, 8 Blade Set
Part Number: R-51544
Brand: RUGGED
Description: Cast blade block set, CCW (Counter Clockwise) Goff style, 8 pcs/set used on a 12”, 13.5”, 15” blast wheel. Includes springs.
Will Replace
5101544
C5101544
CP5101544
G5144-8
Blade Block - CW, 7 Blade Set
Part Number: R-51116
Brand: RUGGED
Description: Cast blade block set, CW (Clockwise) Goff style, 7 pcs/set used on a 12”, 13.5”, 15” blast wheel. Includes springs.
Will Replace
5100116
C5100116
CP5100116
G0116-7
Blade Block - CW, 8 Blade Set
Part Number: R-51543
Brand: RUGGED
Description: Cast blade block set, CW (Clockwise) Goff style, 8 pcs/set used on a 12”, 13.5”, 15” blast wheel. Includes springs.
Will Replace
5101543
C5101543
CP5101543
G1543-8
Bare Wheel
Part Number: R-24282
Brand: RUGGED
Description: Machined bare wheel, 7 blade, for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
002428-002
C002428-002
G2428
CP002428-002
Wheel Hub
Part Number: R-00291
Brand: RUGGED
Description: Machined wheel hub for a 7 blade, Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0000291
C0000291
G0291
CP0000291
Wheel Hub
Part Number: R-44560
Brand: RUGGED
Description: Machined wheel hub for a 8 blade, Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0044560
C0044560
G44560
CP0044560
Bare Wheel
Part Number: R-44559
Brand: RUGGED
Description: Machined bare wheel, 8 blade, for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0044559
C0044559
G44559
CP0044559
Housing Cover Liner
Part Number: R-02046
Brand: RUGGED
Description: Abrasive resistant housing cover liner for a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0002046
C0002046
G2046
CP0002046
Taper Lock Bushing, 7.5 -10hp
Part Number: R-60857
Brand: RUGGED
Description: Taper Lock bushing for 7.5-10 hp, Goff style, 12”, 13.5”, 15” wheel
Will Replace
6000857
C6000857
CP6000857
G60857
Taper Lock Bushing, 15-30hp
Part Number: R-60956
Brand: RUGGED
Description: Taper Lock bushing for 15-30 hp, Goff style, 12”, 13.5”, 15” wheel
Will Replace
6000956
C6000956
CP6000956
G60956
Threaded Clevis
Part Number: R-61159
Brand: RUGGED
Description: Clevis Yoke End, Goff style, 12”, 13.5”, 15” wheel
Will Replace
6101159
C6101159
CP6101159
G61159

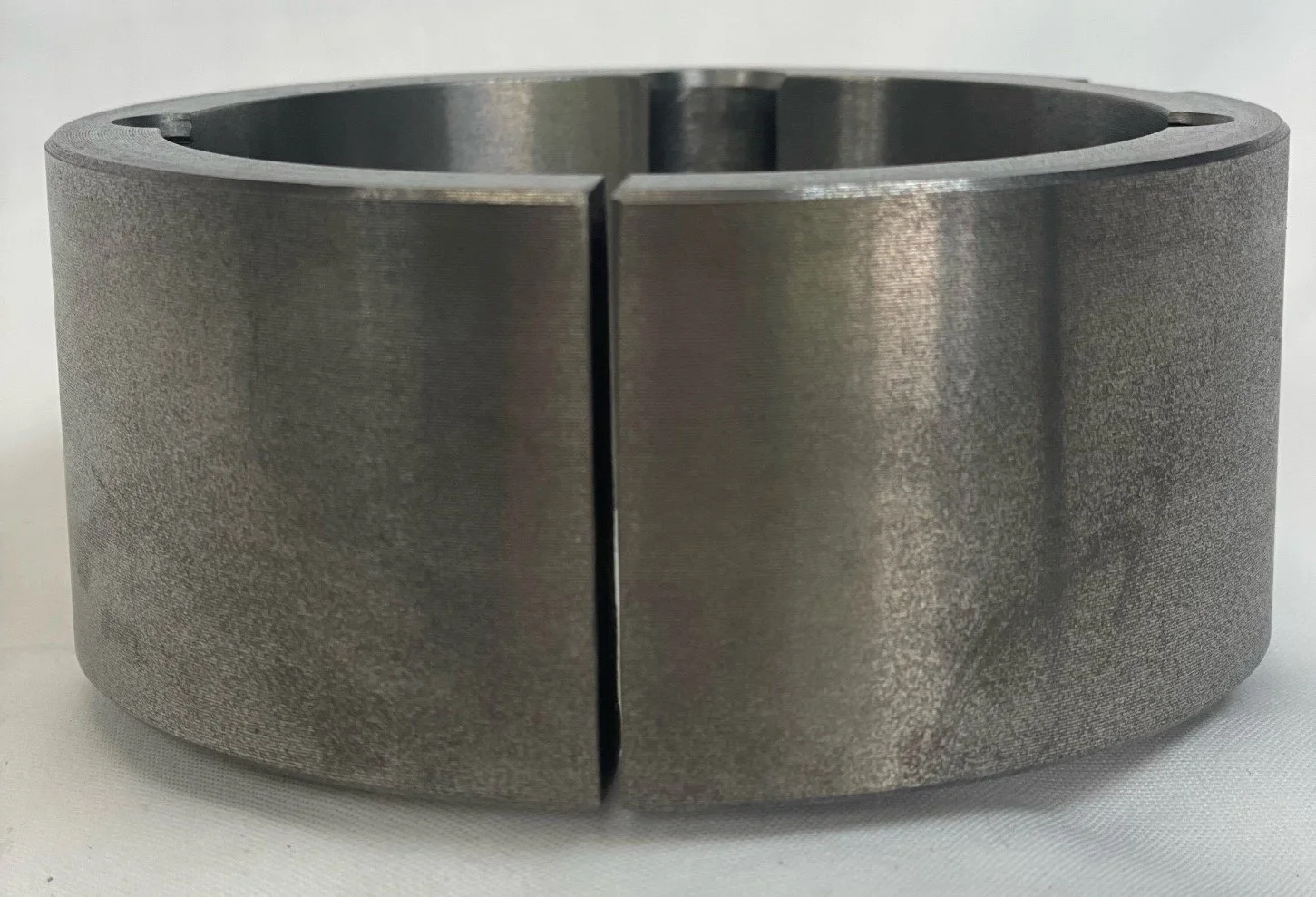

Bushing Adapter
Part Number: R-61204
Brand: RUGGED
Description: Taper Lock Bushing Adapter, Goff style, 12”, 13.5”, 15” wheel
Will Replace
6001204
C6001204
CP6001204
G61204
Hex Nut, Extra Heavy
Part Number: R-72751
Brand: RUGGED
Description: Nut, 3/8-16, Goff style, 12”, 13.5”, 15” wheel
Will Replace
7002751
C7002751
CP7002751
Hex Nut, Extra Heavy
Part Number: R-72752
Brand: RUGGED
Description: Nut, ½-13, Goff style, 12”, 13.5”, 15” wheel
Will Replace
7002752
C7002752
CP7002752

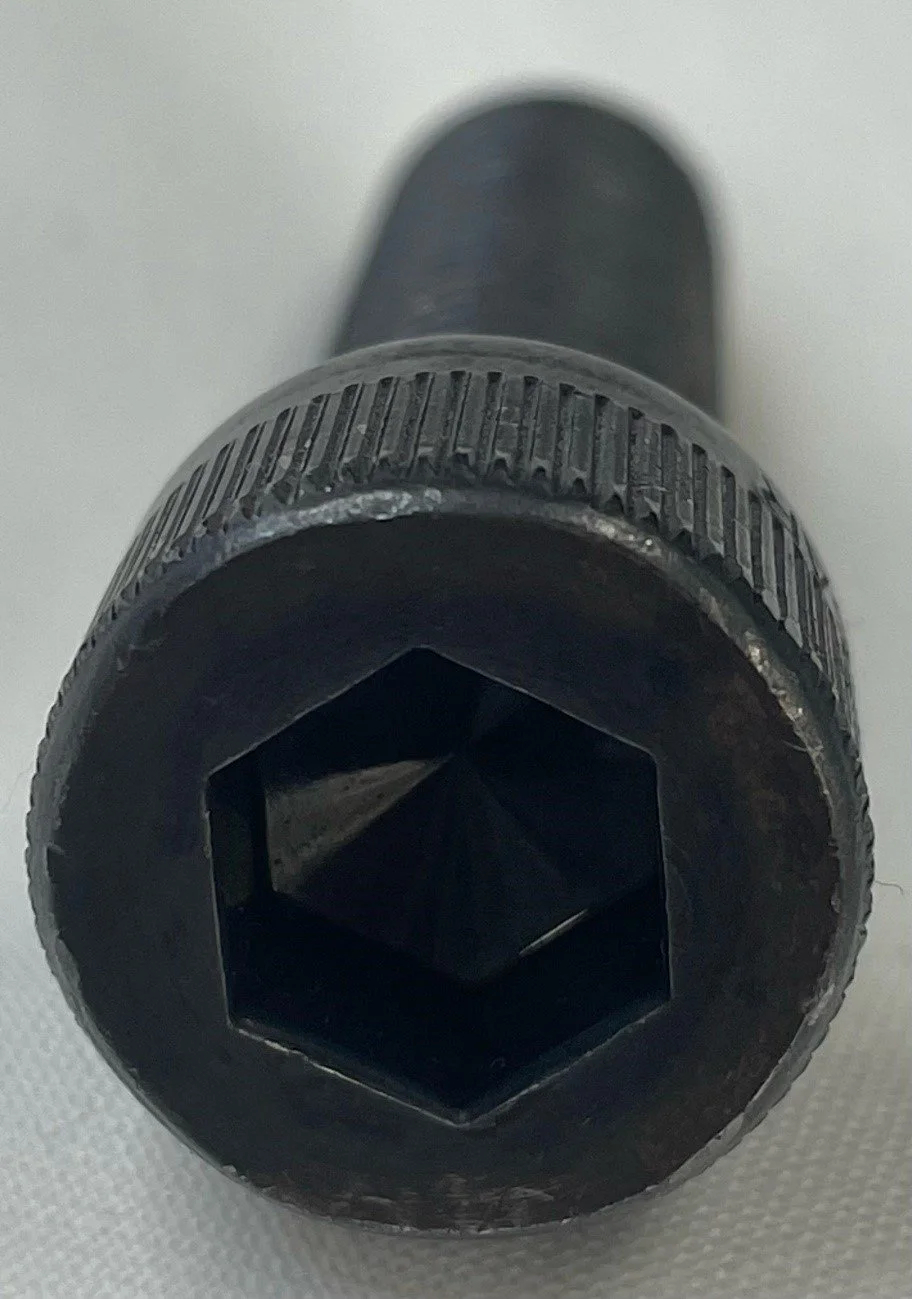

Blade Block Screw
Part Number: R-73910
Brand: RUGGED
Description: Screw, Blade Block, Goff style, 12”, 13.5”, 15” wheel
Will Replace
7003910
C7003910
CP7003910
G73910
Blade Block Screw
Part Number: R-73920
Brand: RUGGED
Description: Screw, Blade Block, Goff style, 12”, 13.5”, 15” wheel
Will Replace
7003920
C7003920
CP7003920
G73920
Spring, set of 8
Part Number: R-10651-8
Brand: RUGGED
Description: Blade Lock Spring, Goff style, 12”, 13.5”, 15” wheel, set of 8
Will Replace
5100651-8
C5100651-8
CP5100651-8
G0651-8
Blast Motor, 15hp
Part Number: R-81030
Brand: RUGGED
Description: Premium 15 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8101030
C8101030
8201000
CP8101030
Blast Motor, 10hp
Part Number: R-80546
Brand: RUGGED
Description: Premium 10 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8000546
C8000546
8201010
CP8000546

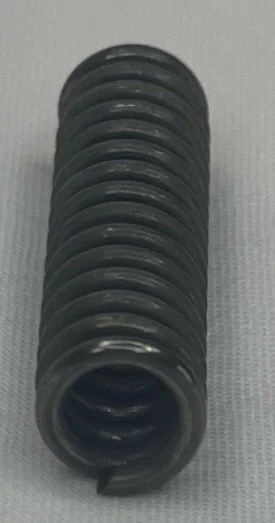

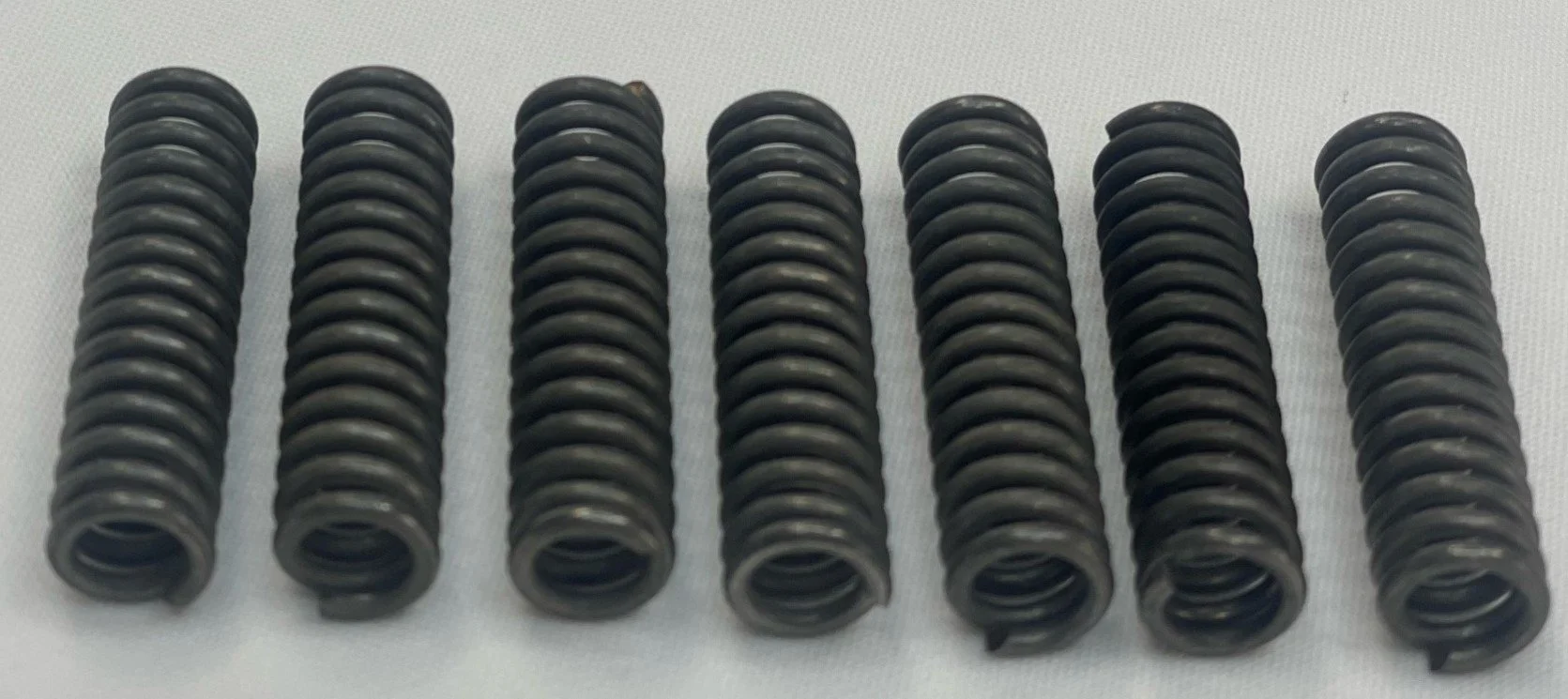

Spring, set of 7
Part Number: R-10651-7
Brand: RUGGED
Description: Blade Lock Spring, Goff style, 12”, 13.5”, 15” wheel, set of 7
Will Replace
5100651-7
C5100651-7
CP5100651-7
G0651-7
Blast Motor, 7.5hp
Part Number: R-80029
Brand: RUGGED
Description: Premium 7.5 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8100029
C8100029
600426
CP8100029
Blast Motor, 25hp
Part Number: R-80048
Brand: RUGGED
Description: Premium 25 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8100048
C8100048
CP8100048
Blast Motor, 20hp
Part Number: R-82796
Brand: RUGGED
Description: Premium 20 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8002796
C8002796
CP8002796
Blast Motor, 30hp
Part Number: R-81044
Brand: RUGGED
Description: Premium 30 HP Blast Motor for a Goff style, 12”, 13.5”, 15” blast wheel.
Representative Image Only
Will Replace
8100044
C8100044
CP8100044
Base Plate, 7.5 or 10hp
Part Number: R-13091
Brand: RUGGED
Description: Fabricated and welded steel base plate for a 7.5hp or 10hp motor used on a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0103091
C0103091
CP0103091
G137549
Base Plate, 25 or 30hp
Part Number: R-44086
Brand: RUGGED
Description: Fabricated and welded steel base plate for a 25hp or 30hp motor used on a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
4040086
C4040086
CP4040086
G2741
Base Plate, 15 or 20hp
Part Number: R-14230
Brand: RUGGED
Description: Fabricated and welded steel base plate for a 15hp or 20hp motor used on a Goff style, 12”, 13.5”, 15” blast wheel.
Will Replace
0142300
C0142300
CP0142300
G137549
